DAB-ESYBOX

DAB Esybox Water Pump

Modle

AMAZING PUMP SALE!!! The Best Pump @ the Best Price!!!

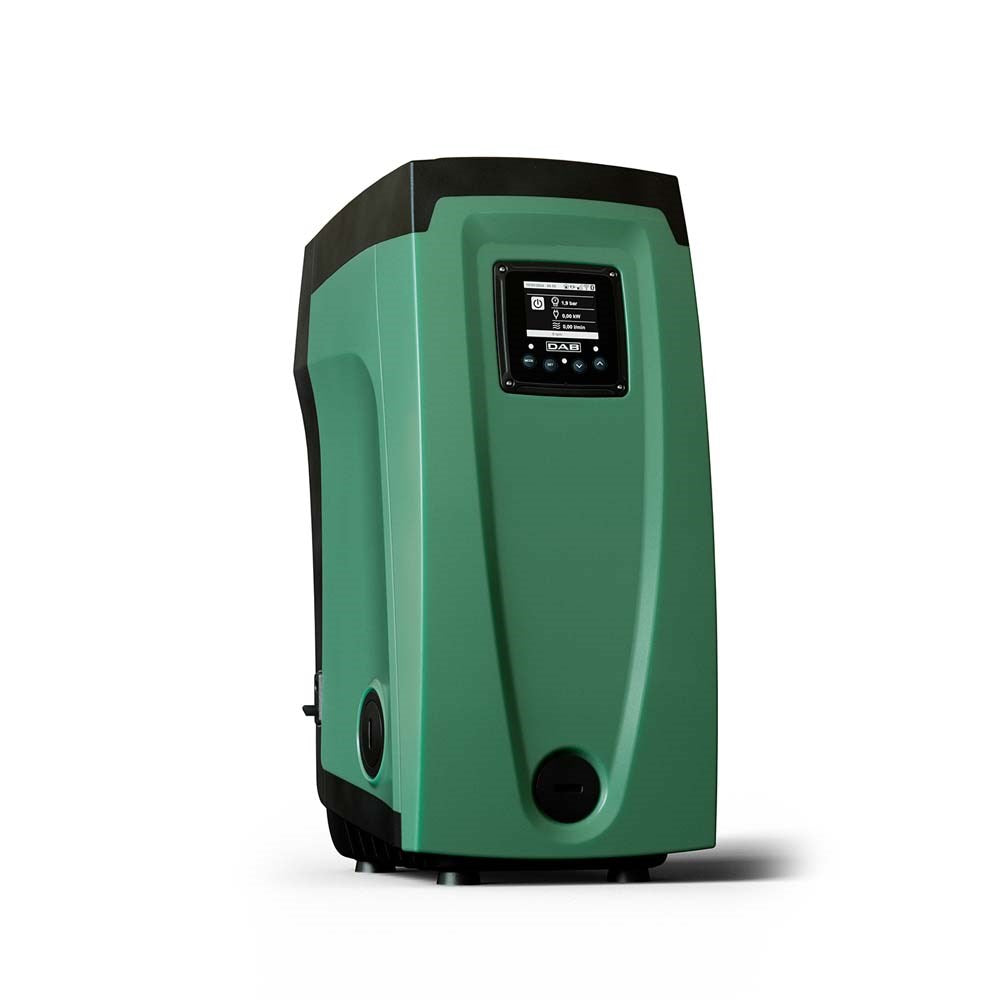

E.SYBOX All-in-One Domestic Water Booster Pump & Pressure System

Experience a revolution in home water pressure with the E.SYBOX electronic water pump. This complete, integrated pumping solution is engineered for superior performance and intelligent control in domestic water supply and light commercial applications. Designed as a compact, all-in-one pressure booster set, it delivers powerful, reliable water flow straight out of the box.

A Complete Water Pressure Booster System in One Unit

The E.SYBOX eliminates the need for complex assemblies. This innovative self-priming water pump integrates every critical component into a single, streamlined system:

  • Self-Priming Multistage Pump (for strong, consistent pressure)
  • Advanced Smart Pump Electronics (for precise control and management)
  • Integrated Pressure and Flow Sensors
  • High-Resolution LCD Display (for real-time monitoring and settings)
  • 2-Litre Integrated Expansion Vessel (reduces pump cycling and protects against thermal fluctuations)

Key Features & Benefits of Our Intelligent Booster Pump

Powerful Water Pressure Performance

  • Achieve a high flow rate of up to 2 L/sec and a pressure head of up to 6 bar, ideal for whole-house water boosting.

Smart Protection for Maximum Durability

  • Dry-Run Protection: Automatically shuts off the pump to prevent damage if no water is present.
  • Intelligent Anti-Freeze Protection: Prevents the formation of ice inside the unit in cold climates.
  • Electrical Safeguards: Integrated over/under voltage and over-current protection shield the pump from power irregularities.

Efficient, Connected Operation

  • Wireless Pump Connectivity: Facilitates the creation of larger pressure booster sets and allows for seamless connection to other DAB devices for system expansion.
  • Self-Priming up to 8 metres for flexible installation.

Trusted Quality & Certification

  • 2-Year Parts & Labour Warranty for complete peace of mind.
  • AS/NZS4020 Drinking Water Approved, ensuring safe use for potable water applications.

Explore Our Range of Booster Pump Kits

Looking for a multi-pump solution? The E.SYBOX technology is also available in pre-configured kits:

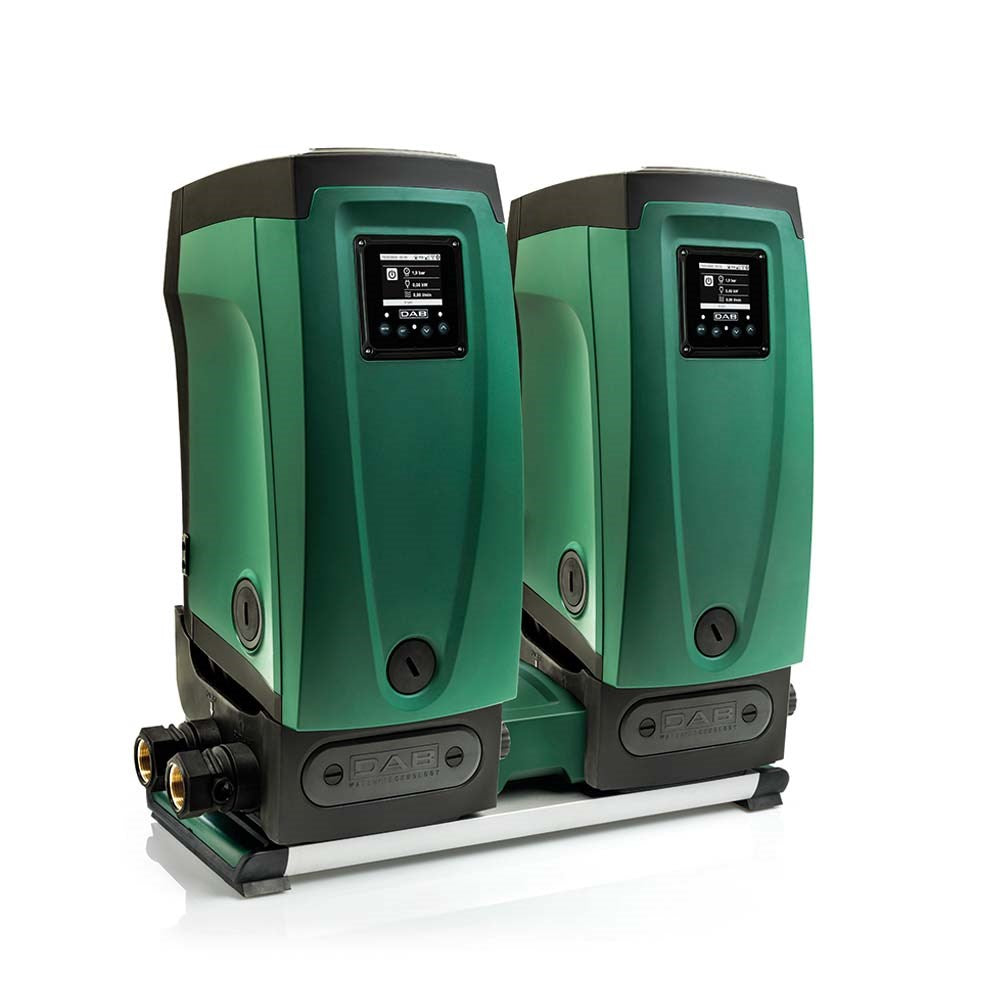

  • DAB EsyTwin (Twin Pump Kit)

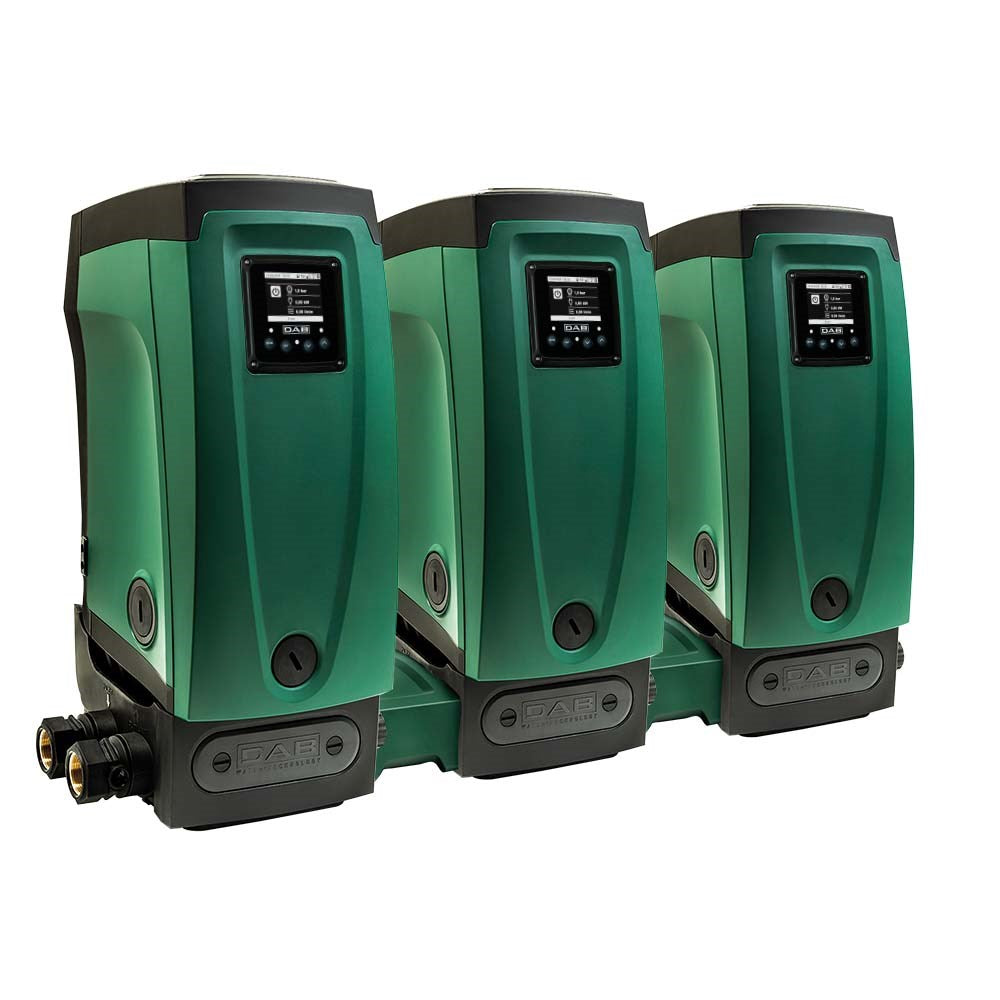

  • DAB EsyTriple (Three-Pump Kit)

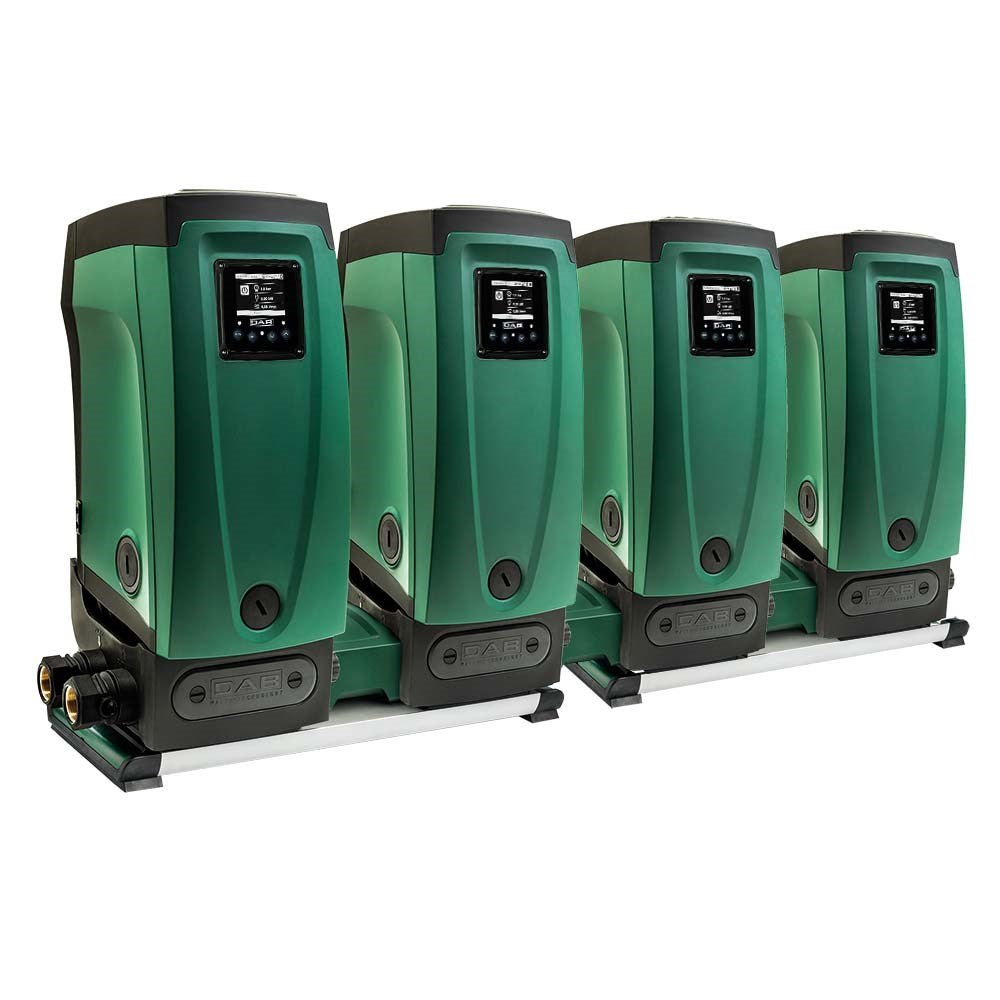

  • DAB EsyQuad (Four-Pump Kit)

Pump Specifications

Model Esybox2 EsyTwin EsyTriple EsyQuad
Width 263mm 752mm 1105mm 1500mm
Depth 362mm 362mm 362mm 362mm
Height 564mm 730mm 730mm 730mm
Weight 27 kg tbc tbc tbc
Power Input 240v - 1.55kw 240v - 2 x 1.55kw 240v - 3 x 1.55kw 240v - 4 x 1.55kw
Current 10A 2 x 10A 3 x 10A 4 x 10A
Water Temp c° 0-40 0-40 0-40 0-40
Inlet 1" BSPF 1.25" BSPF 1.25" BSPF 1.25" BSPF
Outlet 1" BSPF 1.25" BSPF 1.25" BSPF 1.25" BSPF
Flow / Taps 120l/m / 12 taps 210l/m / 21 taps 315l/m / 31 taps 420l/m 42 taps
Protection IP44 IP44 IP44 IP44
Max Head 61m 61m 61m 61m
Supplied Unit Kit Form Kit Form Kit Form

Downloads

Download Brochure
E.SYAPP Mobile Application

e.syapp is the new DAB mobile application for the line of electronic booster sets that redefine the rules of residential water pressurisation: e.syline!

e.syapp allows you to:

  • Choose the ideal e.syline product for your application.
  • Easily calculate cost-savings on your electricity bill
  • Instant access to installation videos, catalogs, quick guides, data sheets and instruction manuals.
