BIA-BPT-3

Bianco Pressure Tanks

$75.00 NZD $82.80 NZD You save: 9% ( $7.80 NZD )
All prices include GST

Model

The Bianco NXT Pressure Tank Range is engineered to extend pump life, prevent rapid pump cycling, and save energy across New Zealand domestic, agricultural, and commercial water systems. Built with cold-rolled carbon steel, a virgin polypropylene liner, a butyl rubber diaphragm, and pre-charged with nitrogen gas to 4 bar, Bianco pressure tanks provide reliable pressurized water storage for every application.

Why Install a Bianco NXT Pressure Tank?

The primary purpose of a pressure tank is to store pressurized water against a nitrogen gas cushion, satisfying small draw-offs (toilet flushes, tap drips, small garden hoses) without forcing your water pump to start every single time.

  • Reduces Pump Starts & Extends Pump Life: Minimizes wear and tear on pump motors, electrical contacts, and mechanical seals caused by constant short-cycling.
  • Saves Energy & Money: Prevents high startup electric current spikes every time a tap is opened briefly, significantly cutting power consumption.
  • Eliminates Small Leak Cycling: Prevents pumps from starting continuously due to minor plumbing drips, toilet valve leaks, or micro-seepage in pipeline networks.
  • Reduces Noise & Water Hammer: Dampens hydraulic pressure spikes and absorbs shockwaves to keep household plumbing quiet.
  • N2 Nitrogen Pre-Charged: Factory pre-charged with nitrogen gas to 4 bar (58 psi) for reduced oxygen corrosion and superior pressure retention over standard atmospheric air.

Construction Features

  • Diaphragm Material: Heavy-duty Butyl Rubber Diaphragm
  • Internal Liner: Virgin Polypropylene Liner (prevents water contact with steel)
  • Outer Shell: Cold-Rolled Carbon Steel with Triple-Layer Protective Paint
  • Gas Cushion: 4 Bar (58 psi) Factory Nitrogen Pre-Charge
  • Water Quality: Potable water approved & safe for drinking water storage

Technical Specifications

  • Max Working Pressure: 10 Bar (147 psi)
  • Maximum Pre-Charge Setting: 5.5 Bar (81 psi)
  • Max Operating Temperature: 90°C
  • Connection Types: 1" BSPT (M), 1" BSP Elbow (F), 1¼" BSP Elbow (F)
  • Mounting Styles: In-Line Vertical, Horizontal Pump-Mount, Vertical Freestanding

1. In-Line Vertical Pressure Tanks (Compact & Direct Line Mounted)

Ideal for compact domestic pressure systems, under-bench installs, and direct pipe-mounting without footings.

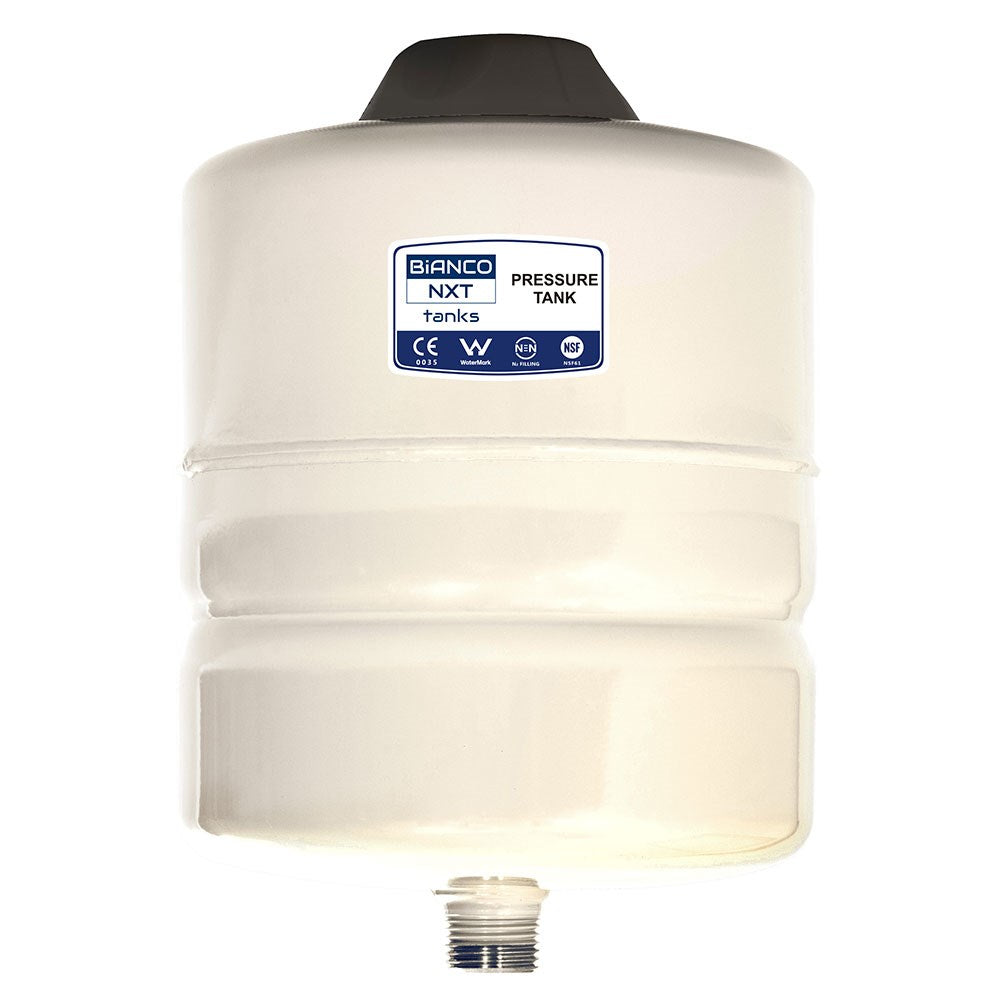

Bianco BIA-BPT-3 (3 Litre)

  • Capacity: 3 Litres
  • Dimensions (Dia x Total Height): 140 mm x 220 mm
  • Inlet Connection: 1" BSPT Male (Stainless Steel)
  • Footing Style: Direct Line-Mounted (No Base)
  • Pre-Charge: 4 Bar Nitrogen

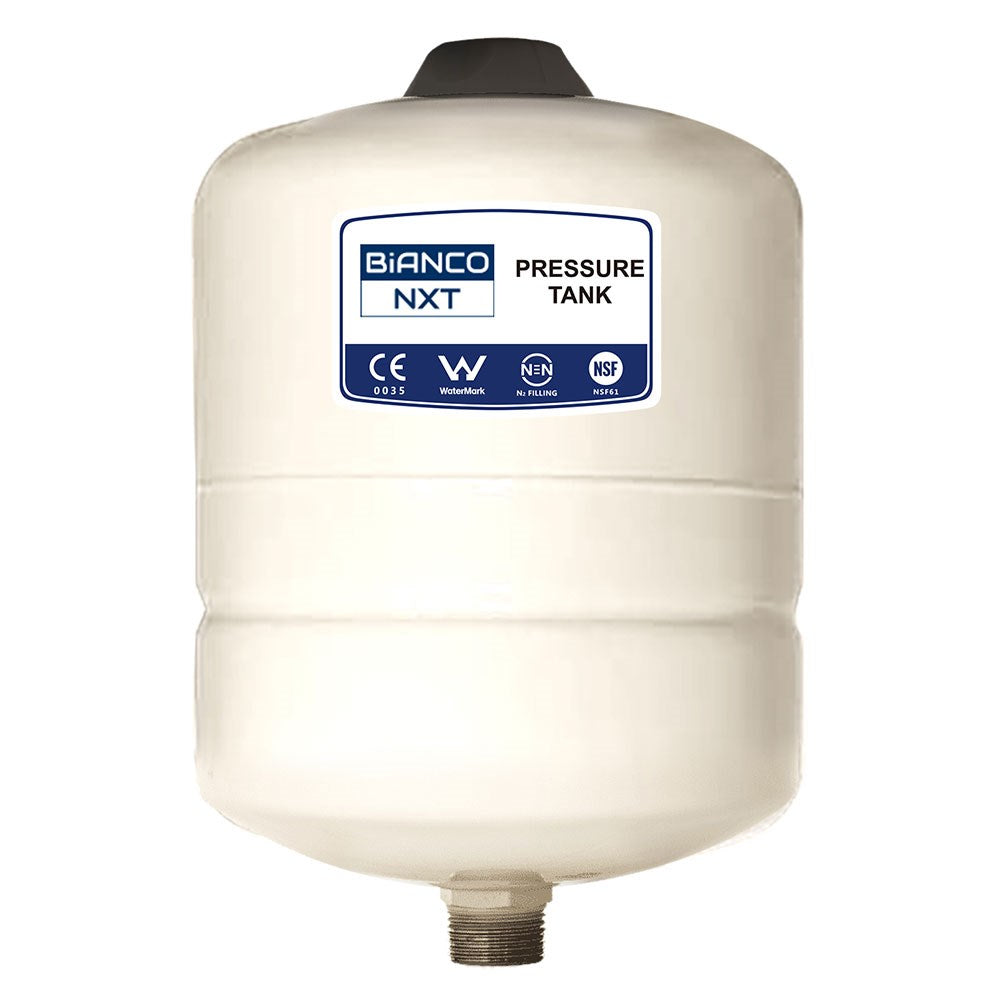

Bianco BIA-BPT-8 (8 Litre)

  • Capacity: 8 Litres
  • Dimensions (Dia x Total Height): 203 mm x 304 mm
  • Inlet Connection: 1" BSPT Male (Stainless Steel)
  • Footing Style: Direct Line-Mounted (No Base)
  • Pre-Charge: 4 Bar Nitrogen

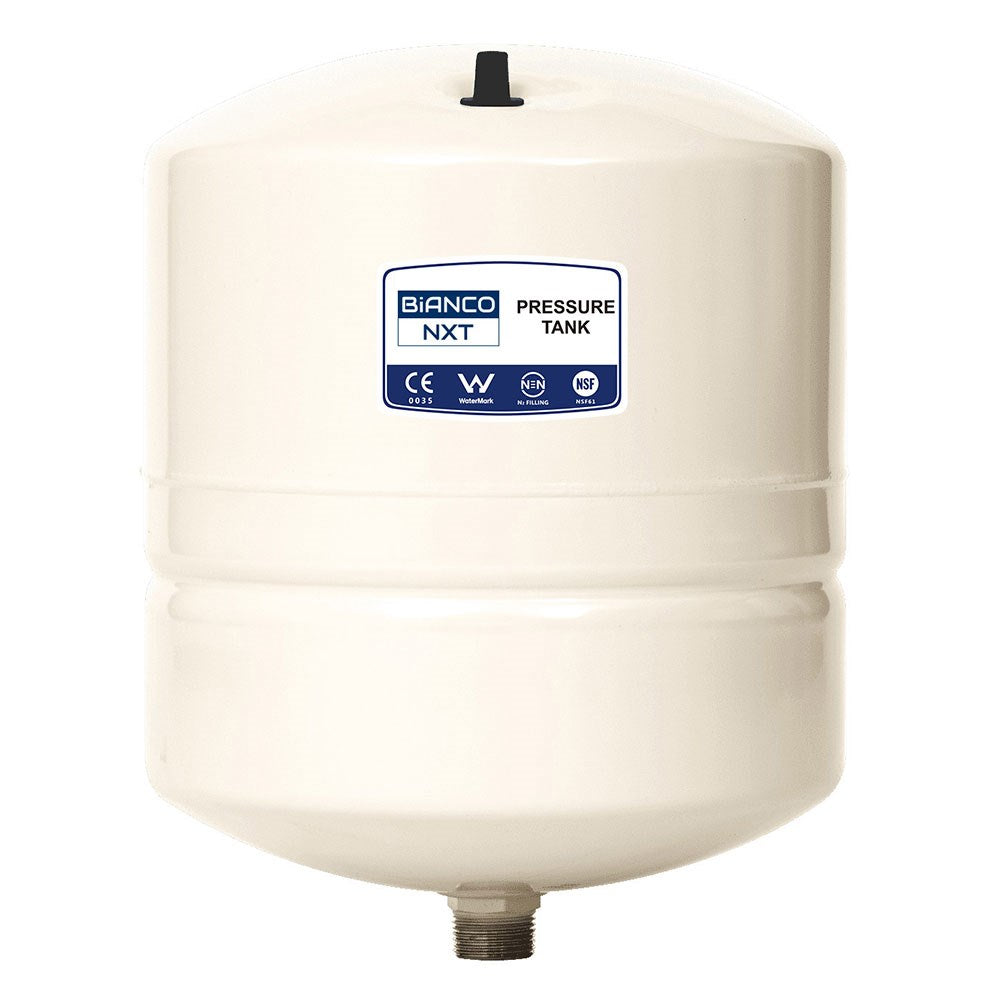

Bianco BIA-BPT-18 (18 Litre)

  • Capacity: 18 Litres
  • Dimensions (Dia x Total Height): 280 mm x 364 mm
  • Inlet Connection: 1" BSPT Male (Stainless Steel)
  • Footing Style: Direct Line-Mounted (No Base)
  • Pre-Charge: 4 Bar Nitrogen

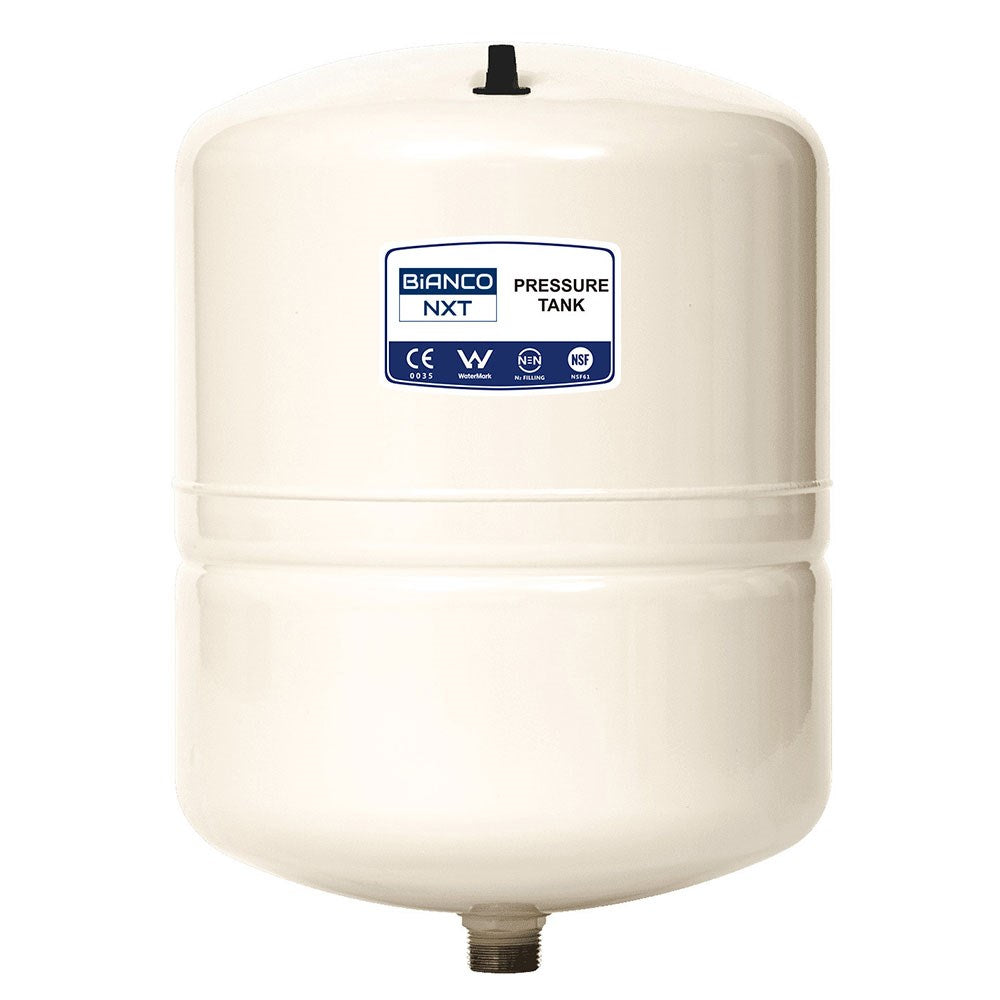

Bianco BIA-BPT-24 (24 Litre)

  • Capacity: 24 Litres
  • Dimensions (Dia x Total Height): 290 mm x 415 mm
  • Inlet Connection: 1" BSPT Male
  • Footing Style: Direct Line-Mounted (No Base)
  • Pre-Charge: 4 Bar Nitrogen

2. Horizontal Pressure Tanks (With Pump Mounting Plate)

Designed with integral pump mounting brackets on top and floor feet below for compact all-in-one pressure systems.

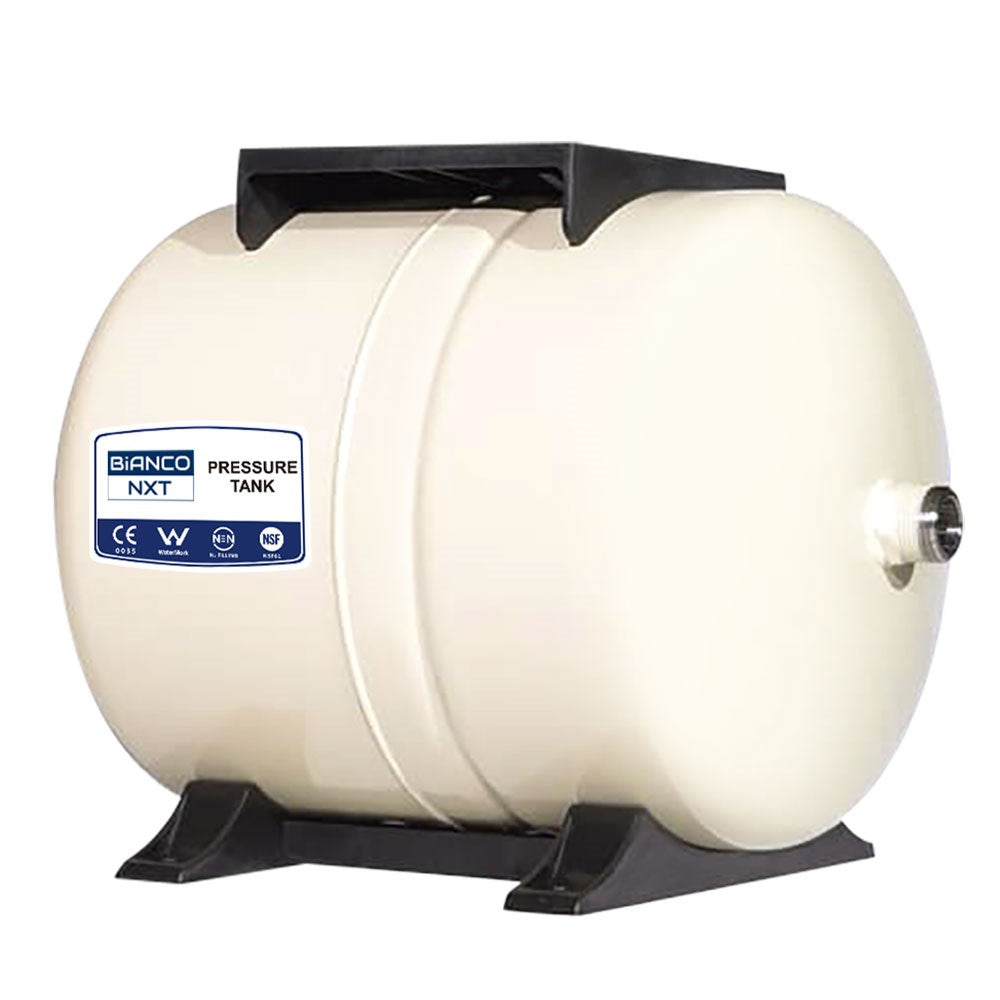

Bianco BIA-BPT-24H (24 Litre Horizontal)

  • Capacity: 24 Litres
  • Dimensions (Dia x Height x Length): 290 mm x 326 mm x 415 mm
  • Inlet Connection: 1" BSPT Male
  • Mounting Style: Horizontal with Top Pump Plate & Floor Feet
  • Pre-Charge: 4 Bar Nitrogen

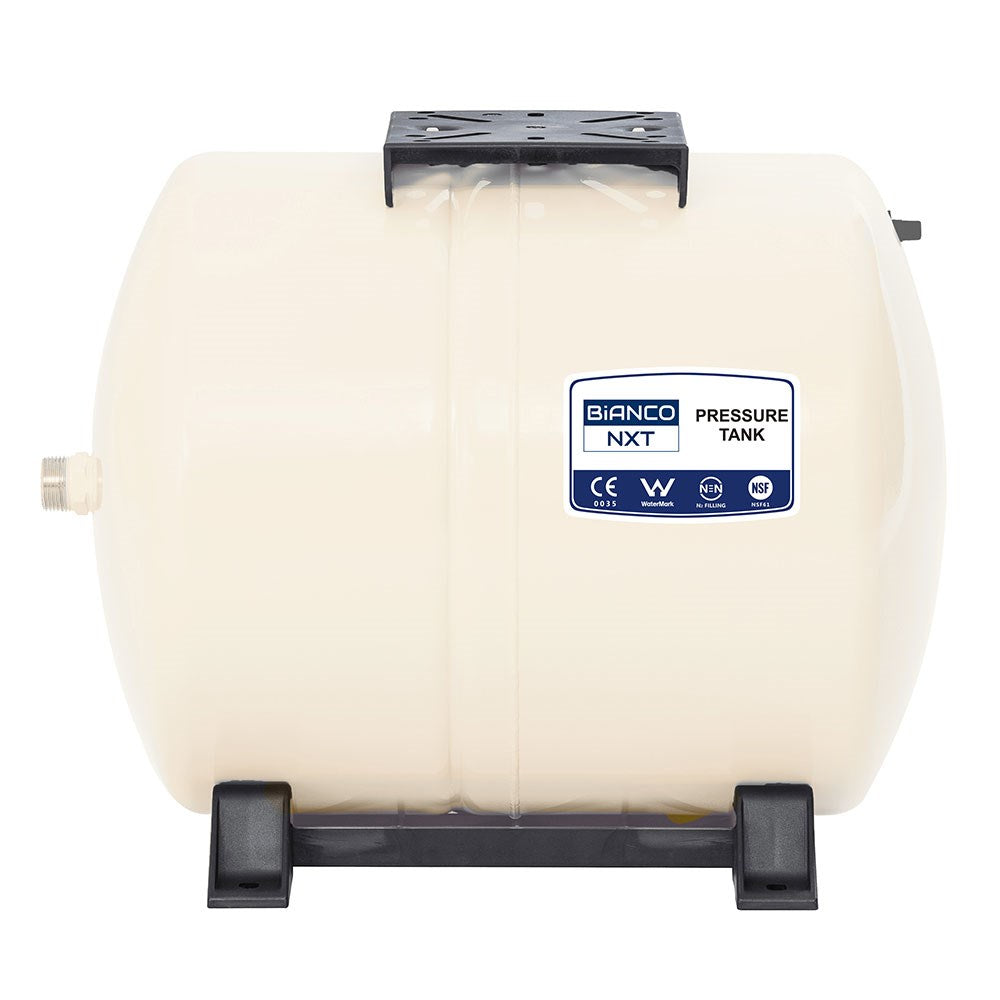

Bianco BIA-BPT-60H (60 Litre Horizontal)

  • Capacity: 60 Litres
  • Dimensions (Dia x Height x Length): 390 mm x 326 mm x 428 mm
  • Inlet Connection: 1" BSPT Male
  • Mounting Style: Horizontal with Top Pump Plate & Floor Feet
  • Pre-Charge: 4 Bar Nitrogen

3. Vertical Freestanding Pressure Tanks (Floor Standing Base)

High-capacity pressure tanks for residential homesteads, multi-dwelling setups, farm washdowns, and commercial booster systems.

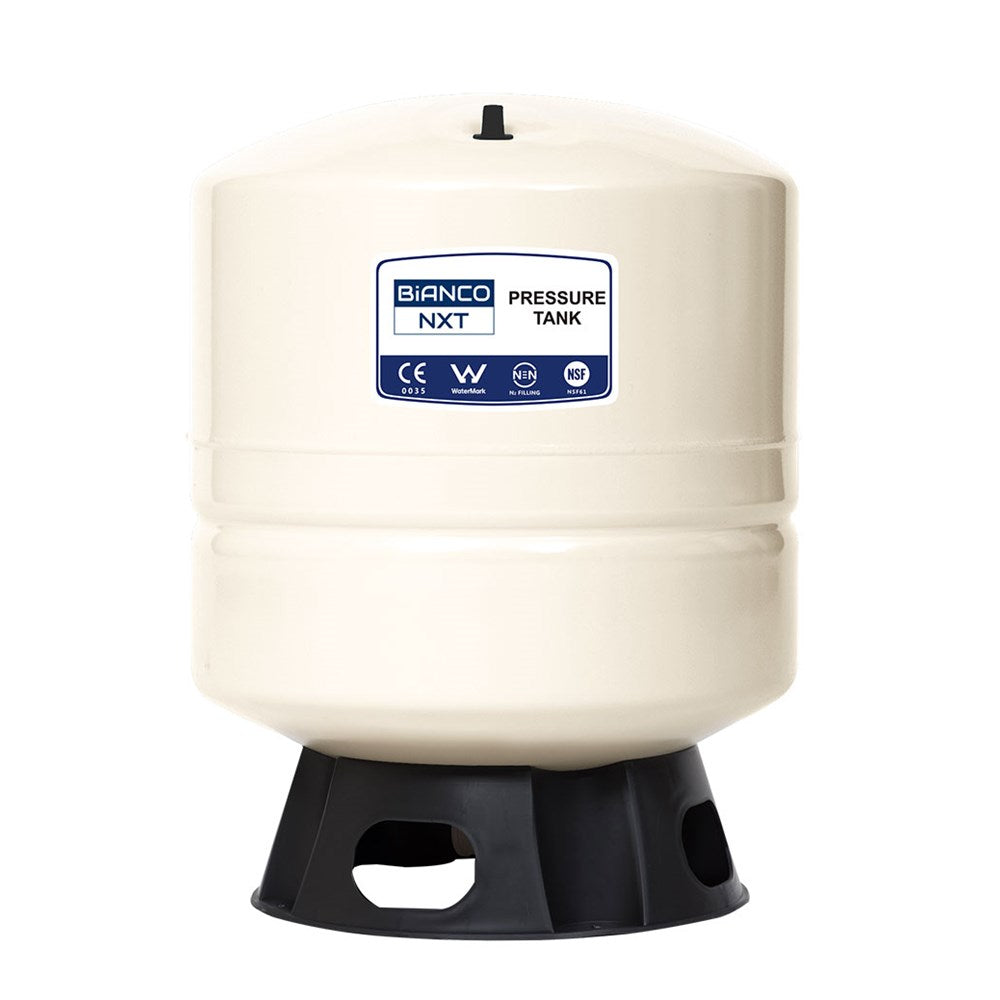

Bianco BIA-BPT-40 (40 Litre)

  • Capacity: 40 Litres
  • Dimensions (Dia x Height): 355 mm x 492 mm
  • Inlet Connection: 1" BSPT Male
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

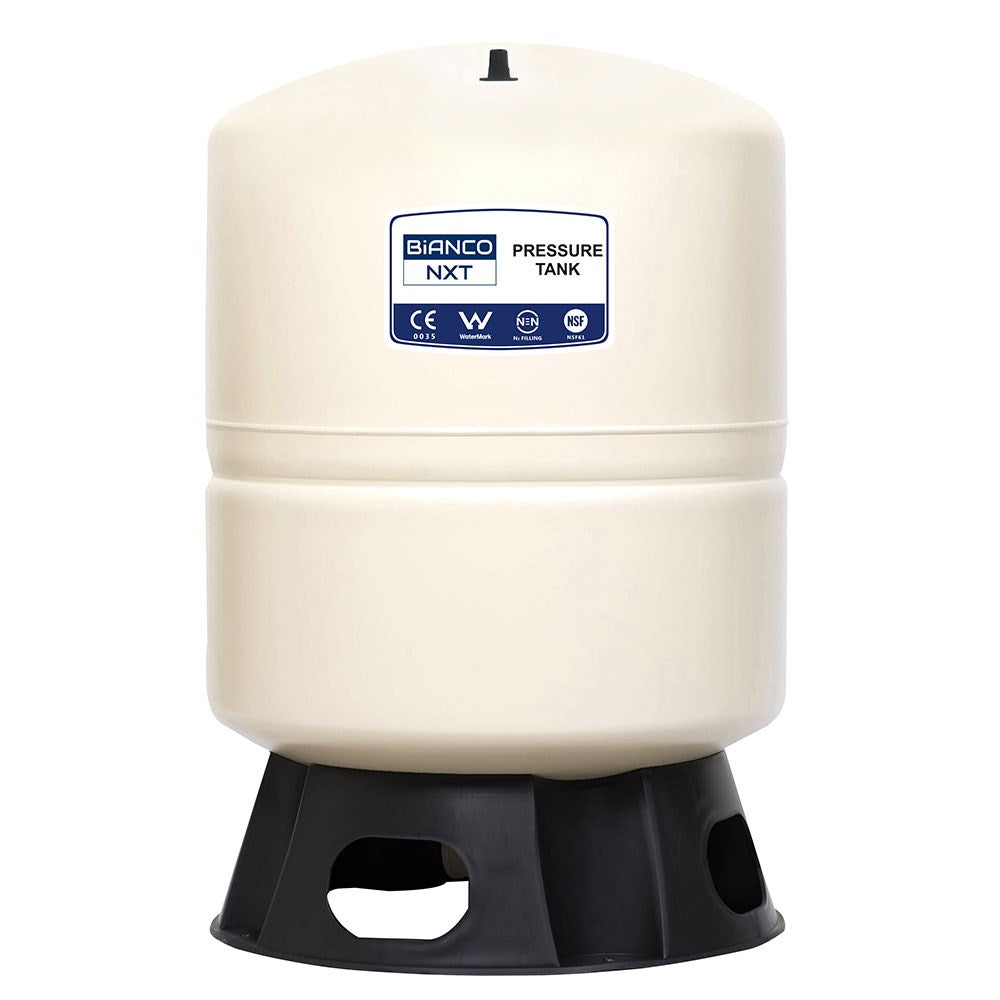

Bianco BIA-BPT-60 (60 Litre)

  • Capacity: 60 Litres
  • Dimensions (Dia x Height): 390 mm x 592 mm
  • Inlet Connection: 1" BSP Elbow Female
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

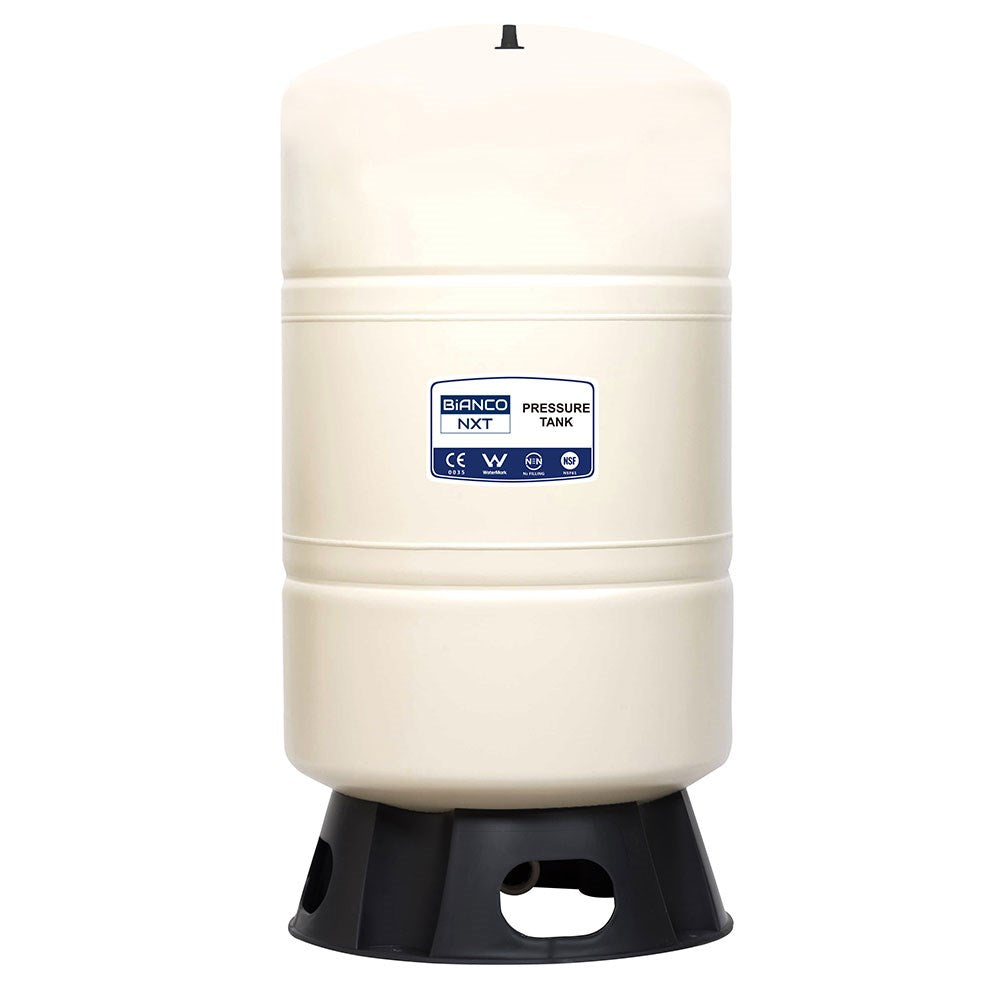

Bianco BIA-BPT-80 (80 Litre)

  • Capacity: 80 Litres
  • Dimensions (Dia x Height): 432 mm x 693 mm
  • Inlet Connection: 1" BSP Elbow Female
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

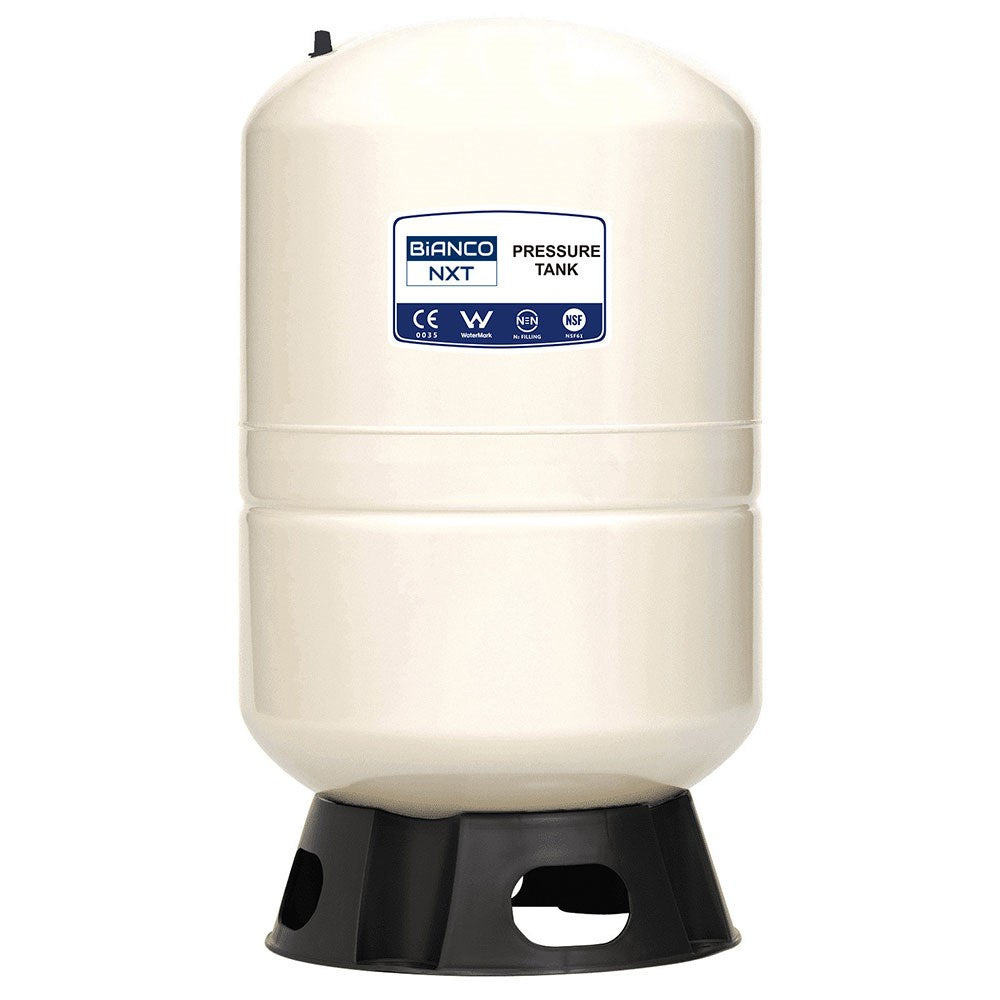

Bianco BIA-BPT-100 (100 Litre)

  • Capacity: 100 Litres
  • Dimensions (Dia x Height): 430 mm x 765 mm
  • Inlet Connection: 1" BSP Elbow Female
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

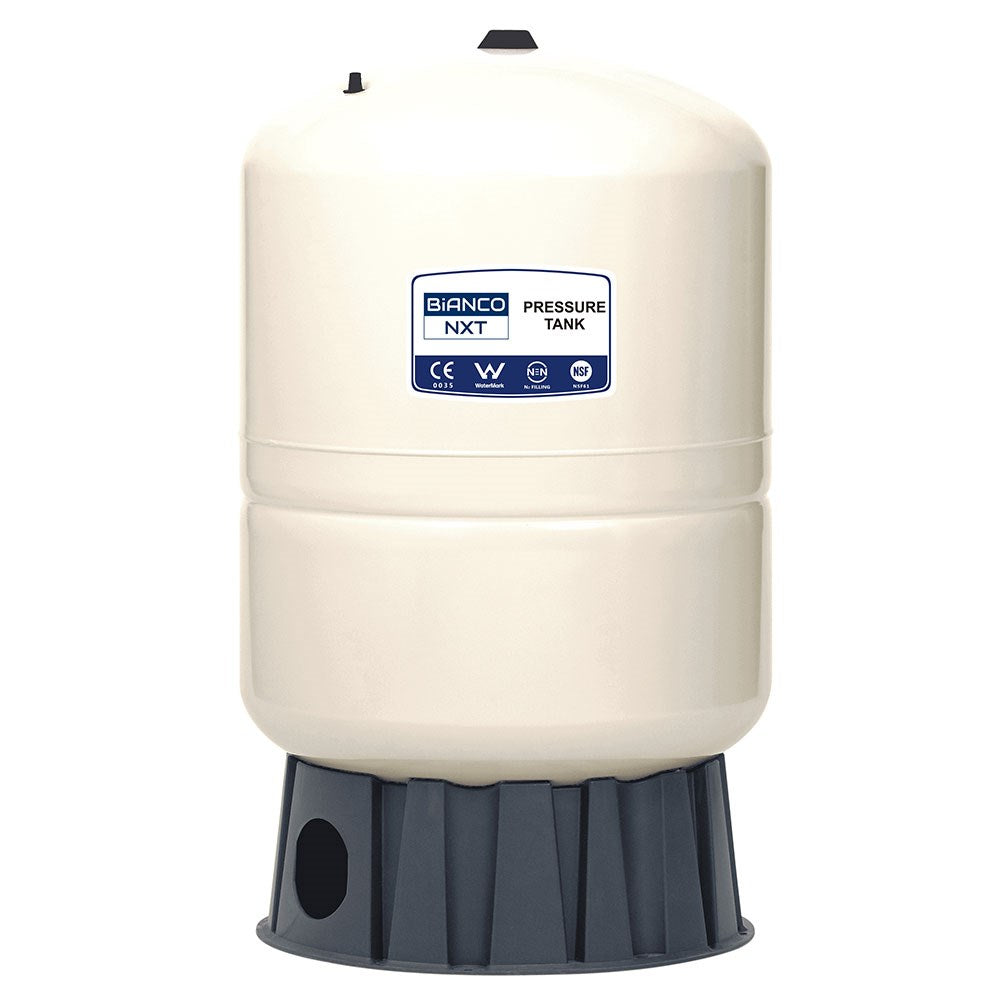

Bianco BIA-BPT-160 (160 Litre)

  • Capacity: 160 Litres
  • Dimensions (Dia x Height): 550 mm x 931 mm
  • Inlet Connection: 1" BSP Elbow Female
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

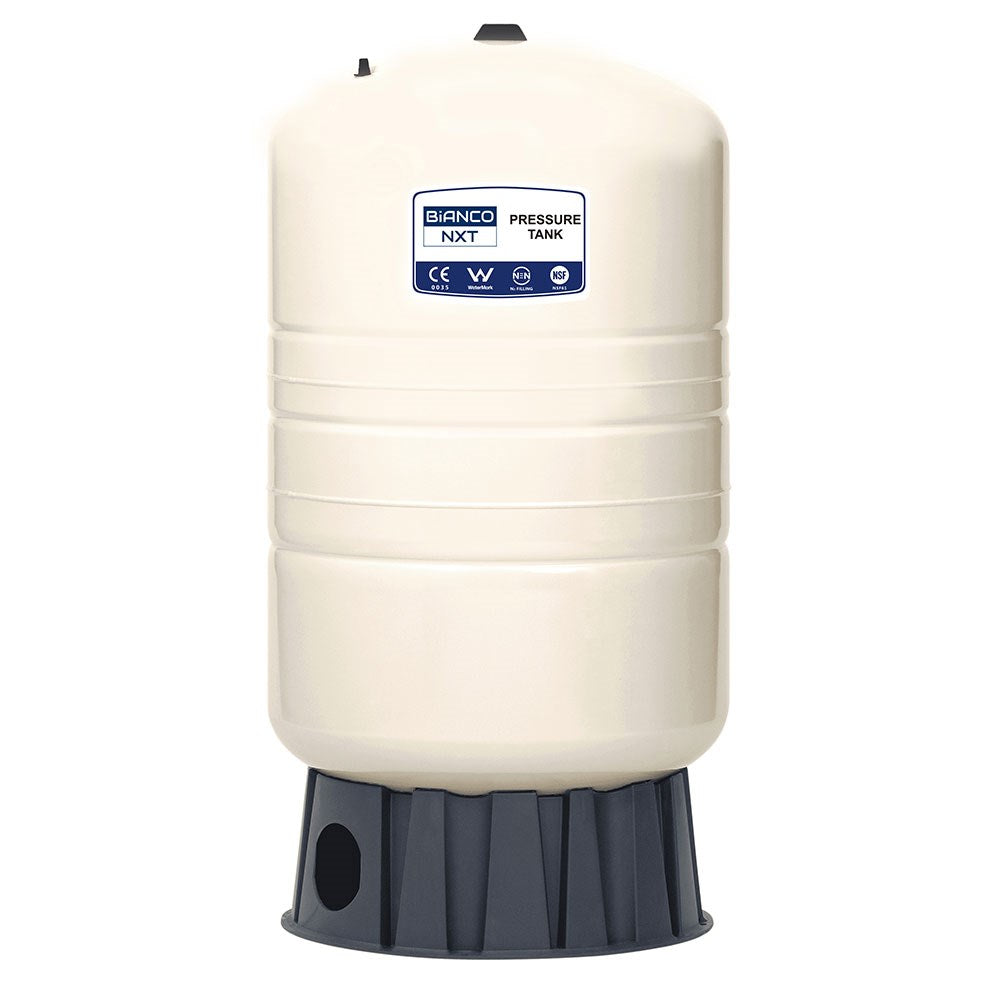

Bianco BIA-BPT-200 (200 Litre)

  • Capacity: 200 Litres
  • Dimensions (Dia x Height): 550 mm x 1068 mm
  • Inlet Connection: 1" BSP Elbow Female
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

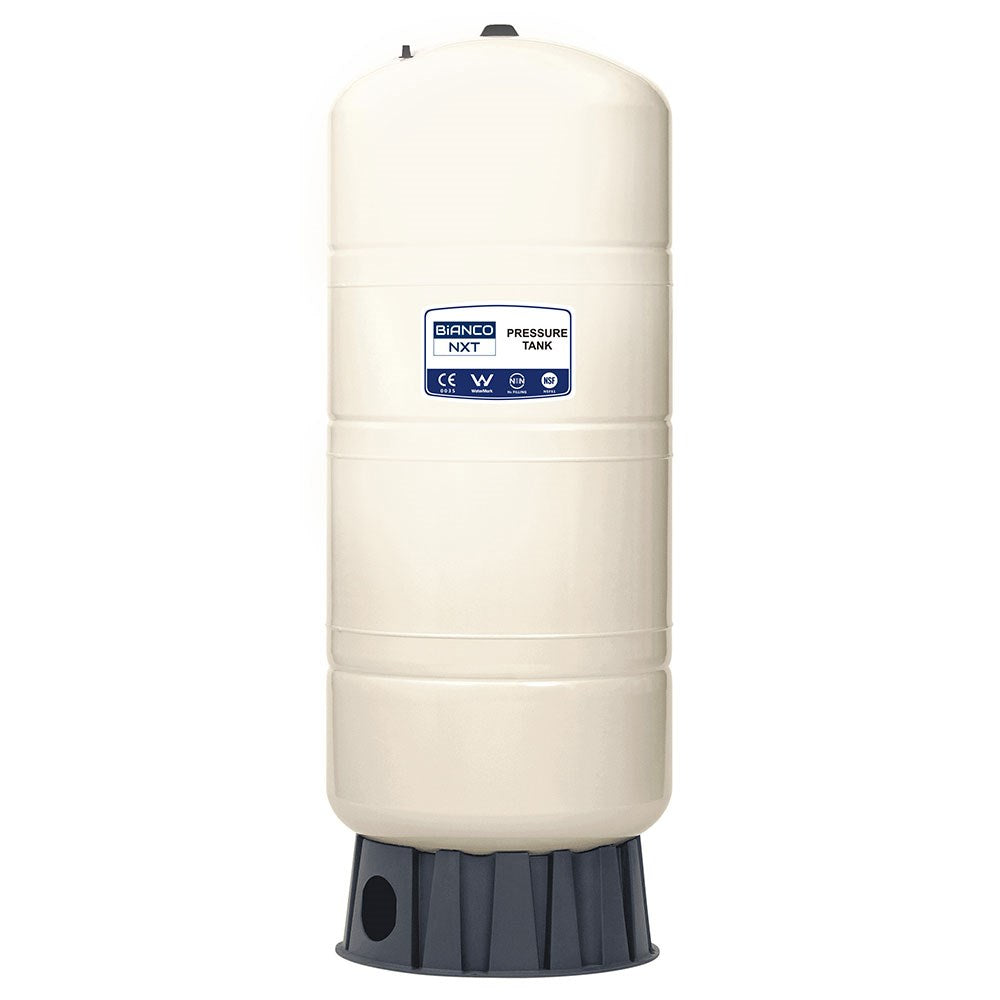

Bianco BIA-BPT-300 (300 Litre)

  • Capacity: 300 Litres
  • Dimensions (Dia x Height): 550 mm x 1463 mm
  • Inlet Connection: 1¼" BSP Elbow Female
  • Base Footing: Plastic Ring Base
  • Pre-Charge: 4 Bar Nitrogen

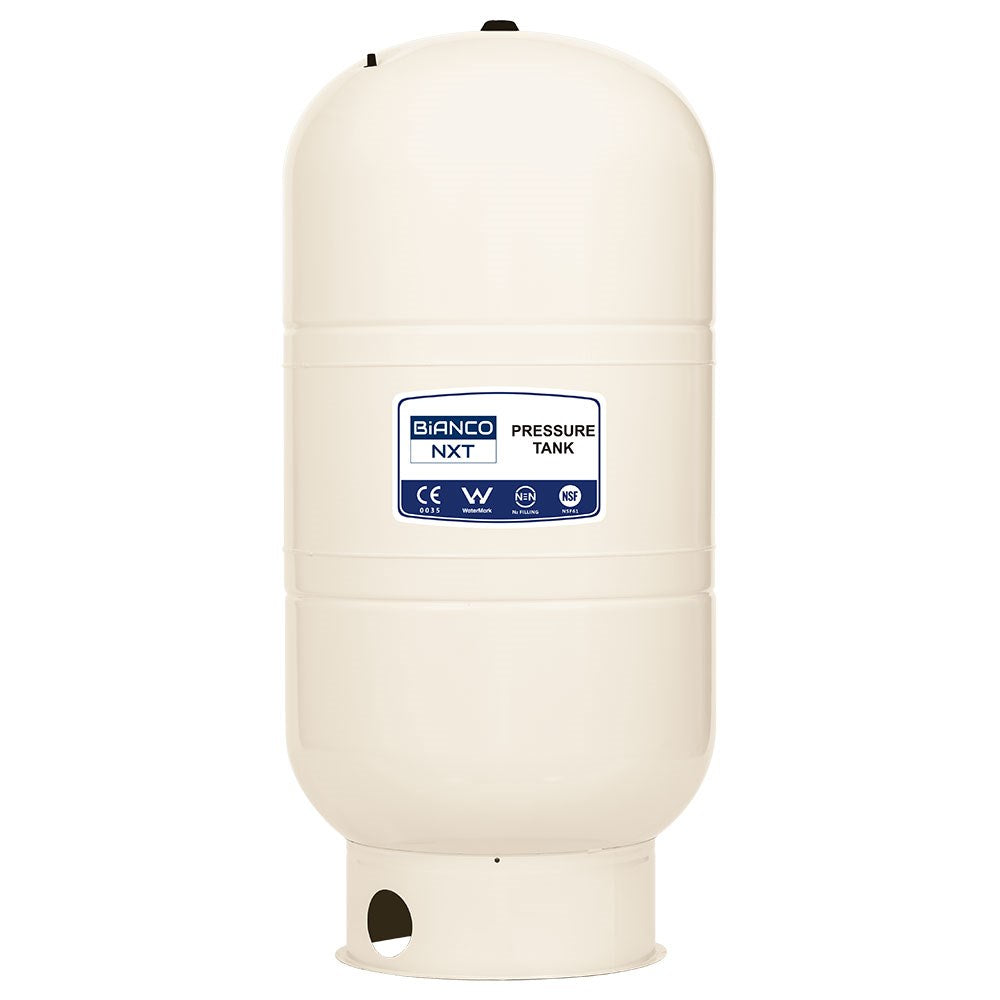

Bianco BIA-BPT-450 (450 Litre)

  • Capacity: 450 Litres
  • Dimensions (Dia x Height): 650 mm x 1410 mm
  • Inlet Connection: 1¼" BSP Elbow Female
  • Base Footing: Metal Ring Base
  • Pre-Charge: 4 Bar Nitrogen

Frequently Asked Questions

How do I adjust the pre-charge pressure for my pump system?

Bianco NXT tanks come factory pre-charged with nitrogen to 4.0 bar (58 psi). For pressure-switch-controlled pumps, the air pre-charge pressure in the tank should be set to 0.2 bar (2–3 psi) below the pump cut-in (start) pressure. Always adjust air pressure when the tank is completely empty of water pressure.

Will a pressure tank work with an electronic pressure controller?

Yes. Many electronic pressure controllers shut off the pump at low flow rather than pressure. Adding a pressure tank absorbs small leaks (like dripping taps or running toilet valves) without triggering the controller to start the pump, saving significant energy over the pump's lifetime.

Why is nitrogen pre-charge better than regular air?

Nitrogen molecules are larger than oxygen molecules, meaning gas leaks through the rubber diaphragm much slower than compressed air. Nitrogen is also dry and non-corrosive, extending diaphragm lifespan and maintaining pre-charge pressure longer.

What size pressure tank do I need for my household?

For standard household supply, a 24L to 60L tank is ideal for general domestic use. Larger dwellings, farm washdowns, or multi-tap irrigation systems benefit from 80L to 450L tanks, which maximize draw-off volumes and reduce pump motor heat from frequent starting.
