WPB-DAB62-2055-MG

Water Pump Box

Colour
Mist Green
Heritage Green
Light Grey
Dark Grey
Slate Grey
Beige
Black
Model
Water Pump Box Logo
The Water Pump Box is the best complete "plug and play" solution for residential and small commercial water harvesting, pumping and treatment, enclosed in a water resisting enclosure, the Water Pump Box currently has two models one for pumping and treating up to 45 litres per min and another for pumping up to 80 litres per minute in a range of colours.

The Water Pump Box uses top quality DAB Jetcom Pumps compete with automated controllers incorporating a small pressure tank, the DAB jetcom 62 NXTP (45l per minute) and the DAB jetcom 132 NXTP (80l per minute).

Water Filtration is done with 2 stage 20” x 4.5” filter housings, supplied with a 20 micron Pleated filter and a 1 Micron Poly Spun filter, the 45l per minute unit incorporates a 55W Ultra-violet UV treatment system equating to 30MJ/cm2 at maximum flow, while the 80l per minute version incorporates a 110W Ultra-violet UV treatment system using twin 55W Bulbs equating to 33Mj/cm2 at maximum flow, ensuring water is always suitable for drinking.

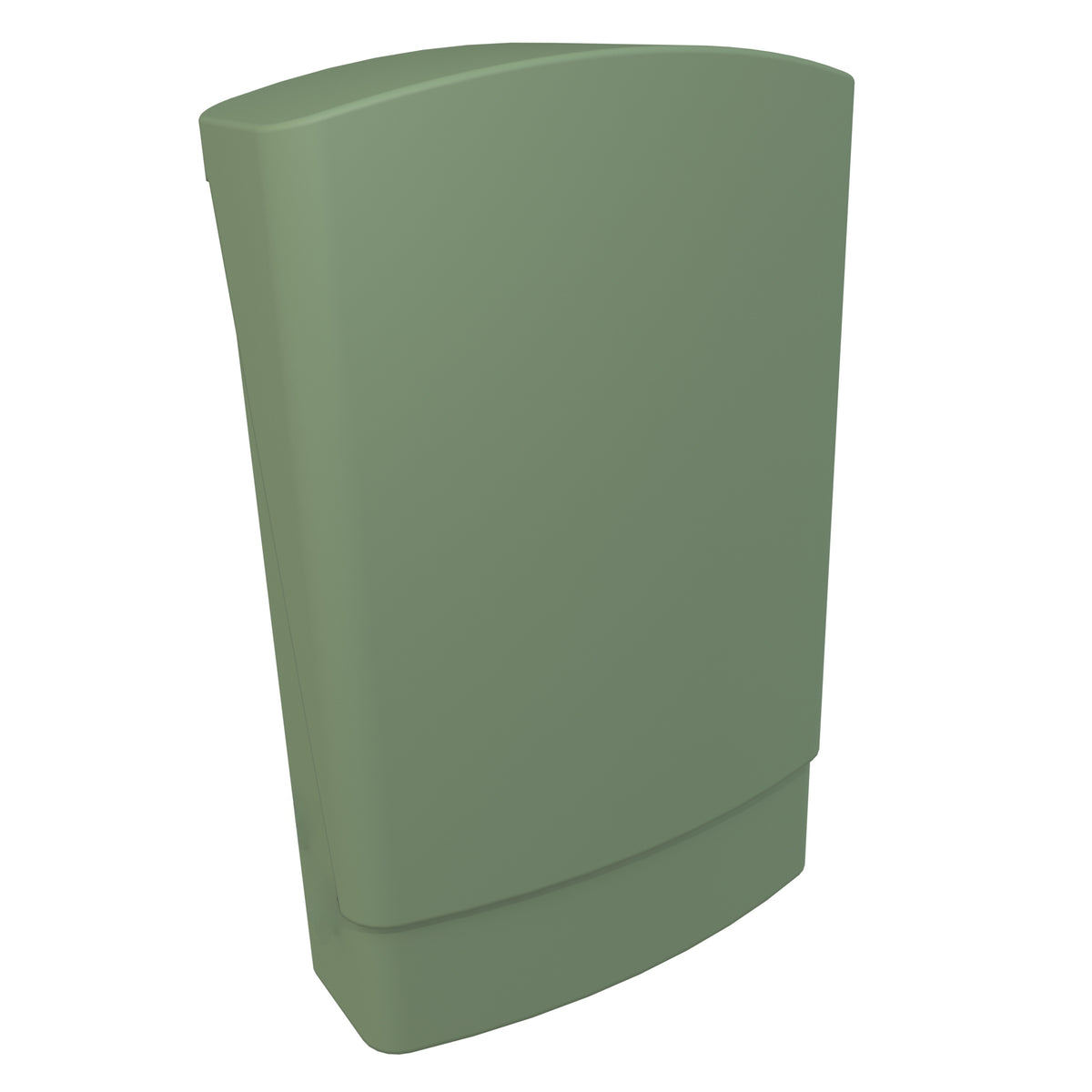

  • Water Pump Box Render - Closed - Mist Green
  • Water Pump Box - Open 45l/ min - Light Grey
  • Water Pump Box - Render - Heritage Green 80l / min
45l / min 80l / min
Width 920 920
Depth 410 410
Height 1420 1420
Motor DAB Jetcom 62 DAB Jetcom 132
Motor KW 0.44 1.00
Motor Amps 3.12 6.60
Motor Max Head 42m 48m
Motor Max Flow 45l 80l
Controller Bianco NXTP Bianco NXTP
Pressure Tank 0.3l 0.3l
Run Dry Protection Yes Yes
Auto Restart Yes Yes
Programable Yes Yes
Filters 20" Dual Stage 20" Dual Stage
First Stage 20" x 4.5" Pleated 20" x 4.5" Pleated
First Stage Mircron 20 Micron 20 Micron
Second Stage 20" x 4.5" Polyspun 20" x 4.5" Polyspun
Second Stage Micron 1 Micron 1 Micron
UV steriliser 55W 110W
Bulbs 55W 2 x 55W
Water Treatment 30MJ/cm2 33MJ/CM2
Materials 316 SS 316 SS
