BIA-INOX45CORE

Bianco Inox Jet Pump

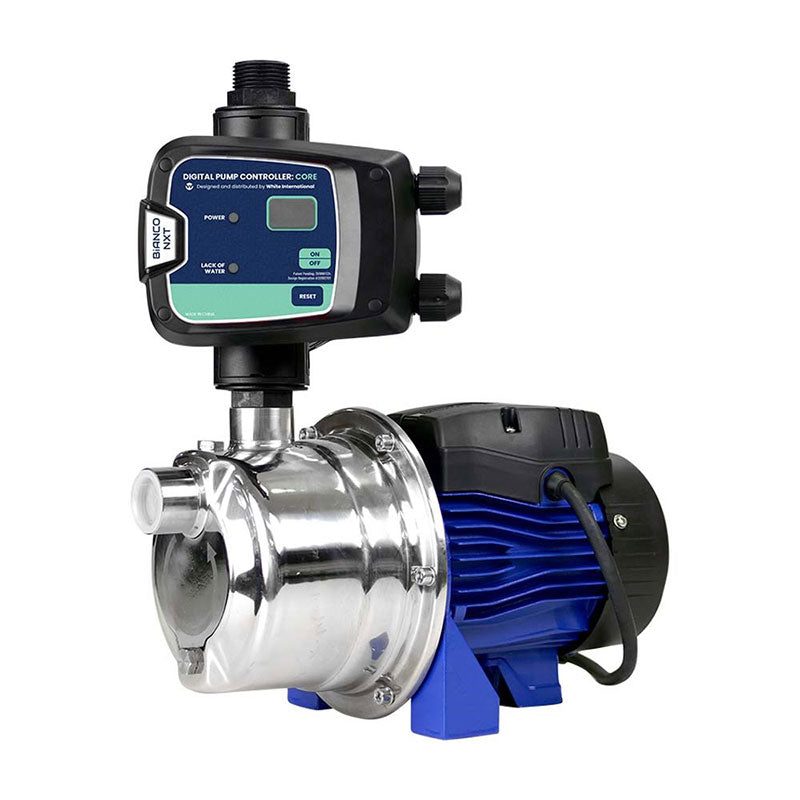

Bianco INOX45S2NXT: Stainless Steel Surface Mount Pump with nXt Controller | 40m 0.45kW 240V

This professional-grade stainless steel surface mount pump system combines robust construction with intelligent controller technology to deliver consistent water pressure for household, irrigation, and agricultural applications. Engineered for tough conditions, this versatile pumping solution handles everything from garden watering and pressure boosting to water transfer and washing systems with exceptional efficiency.

About the Bianco INOX45

Superior Performance for Domestic and Agricultural Applications

The Bianco INOX45S2NXT surface mount pump system represents the pinnacle of water pumping technology, blending industrial-grade materials with smart monitoring capabilities for unparalleled reliability in domestic water management.

Versatile Water Management Solutions

Ideal for comprehensive domestic water supply, the INOX45S2NXT efficiently supports multiple taps simultaneously while providing ample pressure for garden watering. Its self-priming operation and exceptional suction capacity make it perfect for applications where water sources are located below ground level.

Premium Materials for Longevity

Constructed from high-quality stainless steel, the Bianco INOX45S2NXT resists corrosion and maintains structural integrity even in demanding environments. This material selection ensures the pump withstands continuous use without degradation, providing years of reliable service with minimal maintenance.

Intelligent Control System

The integrated Bianco iCON nXt controller features a digital display that provides real-time system pressure monitoring. This Australian-designed and tested controller incorporates multiple protection mechanisms including dry-run protection with auto-restart functionality, anti-cycling protection to prevent motor damage, and anti-seize function.


Key Features & Benefits

  • Stainless Steel Construction: Highly corrosion-resistant for extended service life and durability in various environments
  • nXt Smart Controller: Digital display shows real-time system pressure with multiple protection features including dry-run, anti-cycling, and overload protection
  • Self-Priming Operation: Excellent suction capacity for flexible installation options
  • Drinking Water Approved: Complies with AS/NZ 4020 standards, ensuring safe use with potable water
  • Multiple Application Support: Ideal for garden taps, pressure boosting, water transfer, washing systems, and light irrigation
  • Automatic Protection Systems: Includes dry-run protection with 24-hour auto-restart, anti-seize function, and automatic recovery after power interruption
  • Plug and Play Installation: Pre-wired with IEC-type leads and push-to-connect fittings for straightforward setup

Why Choose our this great Bianco Pressure Pump?

  • Pressure Display: Displays real-time system pressure for easy monitoring
  • Run Dry Protection: With auto start every 24 hours
  • Anti-seize Function: if pump does not run for 24 hours
  • Meets Standards: AS/NZS 4020 - Drinking Water Approved

Technical Specifications

Specification Details
Type of Pump Jet Pump - Clean Water
Max Flow 58 lpm
Taps 5 Taps
Max Head 40m (392 kpa)
Rated Power 0.45kW @ 240V AC
Max Amps 3.50 amps
Inlet Pump 25mm (1" BSP) BSPF
Outlet Controller 25mm (1" BSP) BSPM
Controller Start Pressure 220 kpa - 32 PSI
Controller Stop No Flow
Warranty 2 Years

Dimensions

Bianco Inox 45 Jet Water Pump Dimensions
Dimension Value (m)
Ports (DN1 & DN2) 1" BSPF - Controller Output 1" BSPM (not shown)
Length (L) 337mm
Width (W) 180mm
Height (H (H1)) 181mm (90mm)
Height Including Controller Approx 390mm
L1 78mm
W1 140mm
Fastening Holes (M8) M8
Controller Height 212mm
Controller Depth 225mm
Controller Width 176mm + Cables

Frequently Asked Questions

The pump won't start and makes no noise
Possible Cause Potential Solutions
No electricity Check the power supply - Is the power LED on the controller illuminated?
Fuses or RCD tripped Fuses or RCD tripped may indicate more serious problems
Internal motor fault Contact an expert to check the motor
The static head pressure is greater than the cut in setting (applies when commissioning) Static water head above the controller must be less than 20m
Controller has sensed dry run and is its auto restart cycle (Failure light slowly flashing) Press the controller reset button
The pump doesn't start but makes a noise
Possible Cause Potential Solutions
Motor not free to turn i.e. internal jamming Check whether pump can rotate freely
Faulty Capacitor Contact an expert to check/replace capacitor
The pump runs but there is no flow or only poor flow
Possible Cause Potential Solutions
Valves closed Check suction and discharge isolating valves
Air entering suction line (loss of prime) Check for leaks and ensure all joins or fittings are sealed
The water level may be too low Check water availability
Pump may be worn or damaged Contact your service agent for repair
Blockages in the pump, suction or discharge Contact your service agent for repair
In-line filters blocked (if fitted) Clean any filters/strainers in the system
The piping may be too long or too small Contact your pump professional
The pump runs. There is flow but poor pressure
Possible Cause Potential Solutions
Excessive flow demand Check that the pump selected is correct for the application
Total head requirement too great for the pump Check the pump specification
Pump may be worn or damaged Contact your service agent
Air entering suction line reducing performance Ensure the suction line is sealed correctly
Pump cycling on and off
Possible Cause Potential Solutions
Small water draw off or leak Check for small leaks i.e. taps or cistern
Leak in suction or discharge line Check for leaks including suction line non return valve
Contamination in the controller Contact your service agent to inspect
Pump runs intermittently
Possible Cause Potential Solutions
Overheating and thermal protection tripping 1. Ensure the water temp is less than 40 deg C
2. Ensure sufficient airflow to cool the motor
Note that low voltage can cause the motor to overheat
Pump vibrates and is noisy
Possible Cause Potential Solutions
Incorrectly mounted/fixed Ensure the pump is solidly attached to a base
Internal blockage causing impeller imbalance Contact your service agent
If the flow requirement is greater than the pump is capable of it will cavitate.
Cavitation sounds like gravel inside the pump
1. Reduce the water demand to see if the noise disappears.
2. Ensure the suction pipe is sited correctly.
3. A different pump model may be required.
4. Contact your service agent.
Water leaking from the centre of the pump
Possible Cause Potential Solutions
The mechanical seal is leaking Contact your service agent for repair
